จำหน่าย เครื่องวัดความหนืด Viscometer

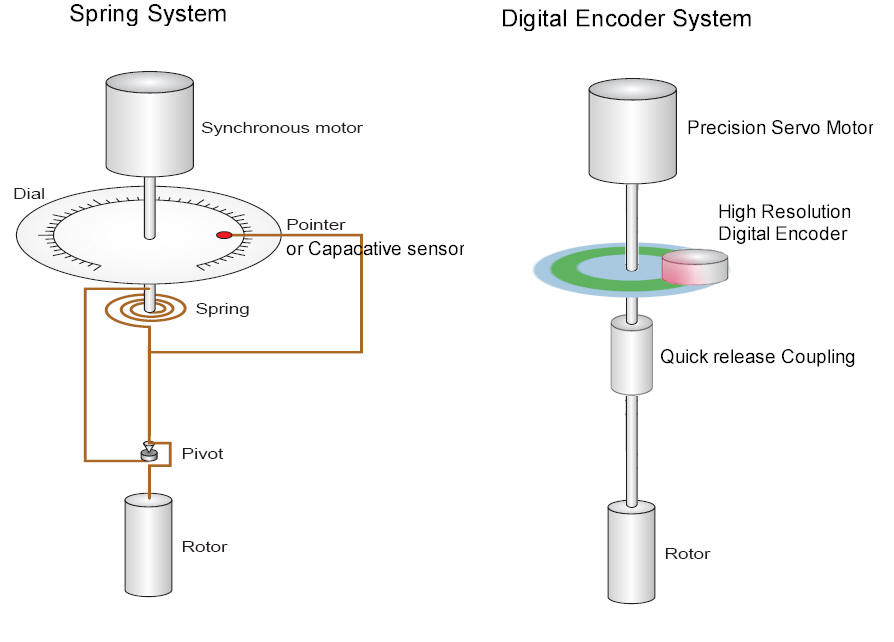

dz

Viscometer (เครื่องวัดความหนืด) คือ เครื่องมือใช้สำหรับวัดความหนืดของของเหลว โดยวัดความหนืดจากแรงต้าน และความหนืดสัมพัทธ์ของของเหลว มีแบบเข็มและดิจิตอล เหมาะกับใช้ในอุตสาหกรรมอาหาร, เครื่องสำอาง เป็นต้น

รุ่น รายการ ราคา
 NDJ-1 เครื่องวัดความหนืดแบบหน้าปัด 32,000
 NDJ-5S เครื่องวัดความหนืดแบบดิจิตอล 55,000

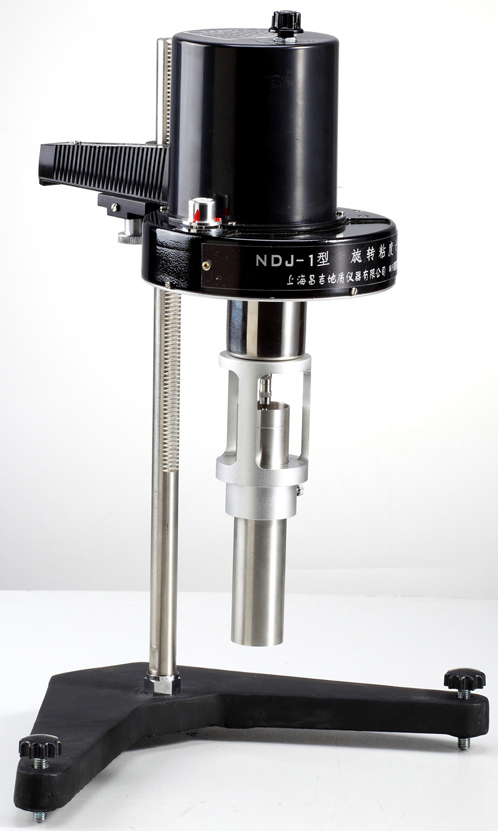

NDJ-1

NDJ-1

Pointer Viscometer

Rotational Viscometer(Pointer Display) NDJ-1
It can be widely used to determine viscosity of oil grease, paint, plastics, food, medicine, adhesive, and other fluids.

Purpose:

The instrument is used to determine the absolute viscosity of liquids.

Specification:

Viscosity Range 10~1*105mPa.s
Testing Rotor 4 types
Rotate Speed 6r/min, 12r/min, 30r/min, 60r/min
Testing Error 5%(Newton liquid)

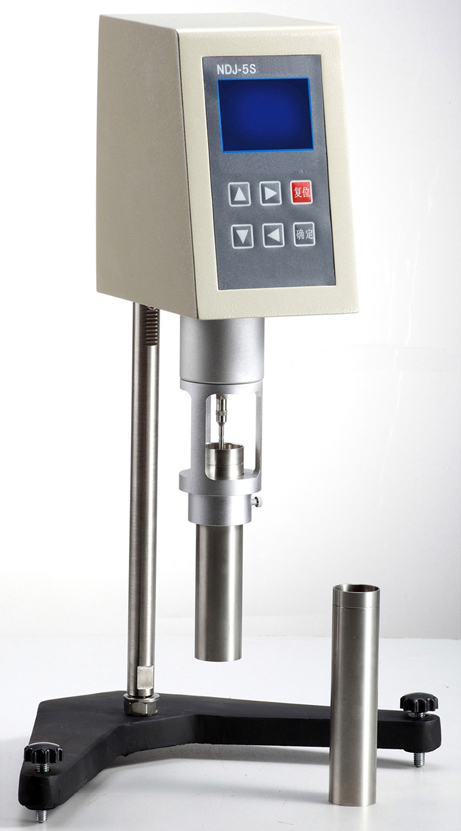

NDJ-5S

 NDJ-5S

Digital Viscometer

Rotational Viscometer(Digital NDJ-5S)
CJ-NDJ-5S Rotation Viscometer is an improved product of our traditional Rotation Viscometer. Adopting advanced mechanical design.

I. Summary
The instrument adopts advanced mechanical design technologies, manufacturing techniques, and microprocessor controlling technologies, so it can correctly collect test data. The display used is a white background light, ultra-brighten LCD, so the test data can be shown clearly. The instrument has a special port for the printer, so you can print out test data through a printer.

II. Main technical characteristics
1. The instrument adopts advanced mechanical design technologies, manufacturing techniques, and microprocessor controlling technologies, so it can correctly collect test data. It is sensitive, reliable, convenient, and beautiful.
2. The display used is a white background light, ultra-brighten LCD, so it can show the sample viscosity, spindle No., and speed directly. The test data can be shown clearly.
3. It can preset 8 grades of speed, so it can meet measurement requirements in the different viscosity ranges.
4. It has a special port for the printer, so you can print out test data through a printer.

III. Main technical specification and parameters
1. Measurement range: 10~ 1*105mPa·s
2. Spindle: No.1~4 total 4 spindles; (0# spindle is optional);
3. Spindle speed: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 RPM total 8 grades;
4. Measurement error: ±1% (F.S);
5. Power supply: AC 220V±10%, 50Hz±10%;
6. Working environment:
(1) Temperature: 5°C~35°C;
(2) Relative humidity: not more than 80%;

สอบถามรายละเอียดเพิ่มเติมได้ที่

TEL : 083-0494100 ติดต่อ คุณธีรพงษ์
Line ID : @scitrader (Click เพื่อเพิ่มเพื่อน)
Mail : sale@scitrader.co.th
